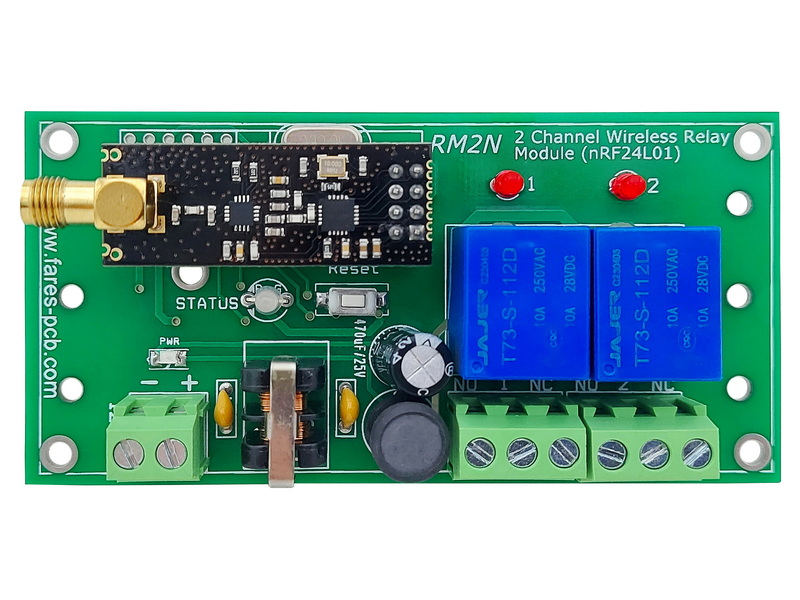

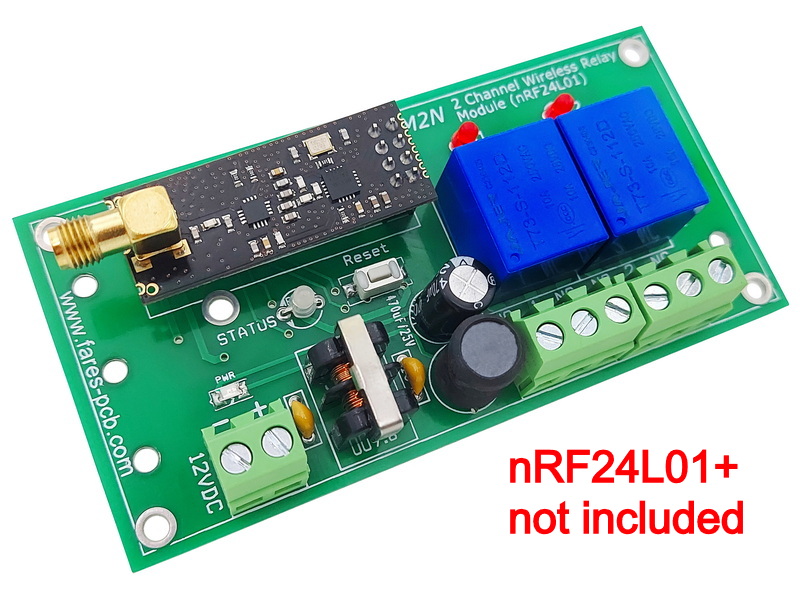

2-Channel Wireless Relay Module nRF24L01+ (RM2N)

The RM2N is a 2-channel wireless relay module based on the nRF24L01+ chip from Nordic Semiconductor. The nRF24L01 module is designed to operate in the global 2.4GHz ISM frequency band and uses GFSK modulation to transmit data. The card is well-protected, filtered, and easy to install. RM2N outputs can drive loads up to 10A (resistive loads).

Features:

• Based on nRF24L01+ module.
• On-board 3.3V,5V regulator.
• Power input is filtered for noise reduction.
• LED for power indication.
• Operating voltage DC12V.
• Two output relays with red LED indicators.
• Both normal open and normal close terminals are available.
• Relay outputs are available through 5mm 2-pin K128 screw clamp terminals.
• Easy configuration and test.
• Reset push button switch is included.
• DIN Rail mountable.
• Four (Ø 3.5mm) mounting holes for easy installation.
• Dimensions: 100 X 50 X 18mm.
