Additional information
| Weight | 0.165 kg |
|---|---|
| Origin | Egypt |
| Mounting | Mounting Holes, PCB Carrier, PCB Bracket |

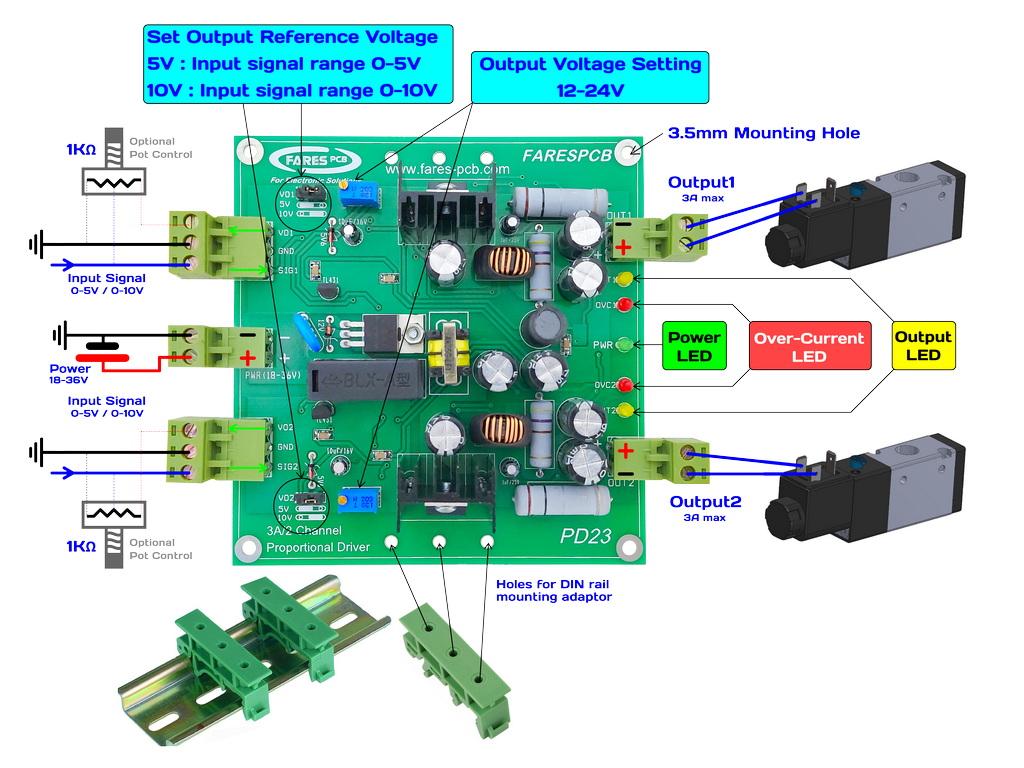

3A Dual Channel Proportional Valve Driver (PD23)
1,600.00 EGP
PD23 is a dual-channel industrial proportional solenoid valve driver suitable for flow and pressure control.
Features :
- Operating mode: Switching.
- Operating voltage range: 18~36V.
- Maximum output power: 150W.
- Pot-adjustable output voltage range: 12~24V.
- Maximum output current: 3 ampere.
- Two selectable input signal ranges: (0~5V) and (0~10V).
- Two selectable output reference voltages 5V and 10V (MAX 20mA).
- Reverse polarity protection.
- Over-current and short-circuit protection.
- Green LED for power indication.
- Yellow LED for each output indication.
- Red LED for each output fault status.
- Four (Ø 3.5mm) mounting holes for easy installation.
- DIN Rail mounting using PCB carrier or PCB bracket ( Optional ).
- Dimension: 112 x 107 x 27 mm.
In stock
Related products
-
-

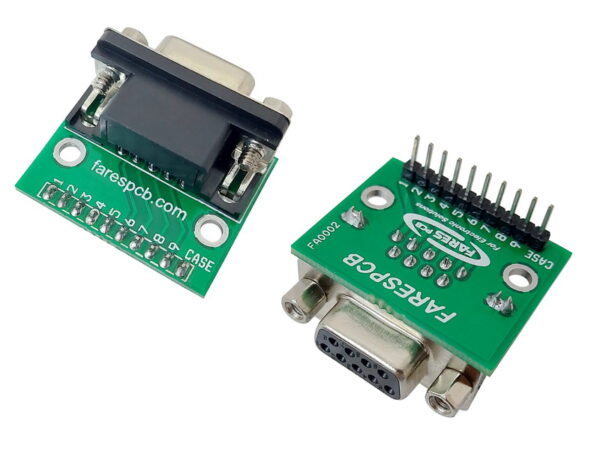

DB9 Female to Pin Header 20.00 EGP -
