Additional information
| Weight | 0.085 kg |
|---|---|
| Origin | Egypt |
| Mounting | Mounting Holes, PCB Carrier, PCB Bracket |

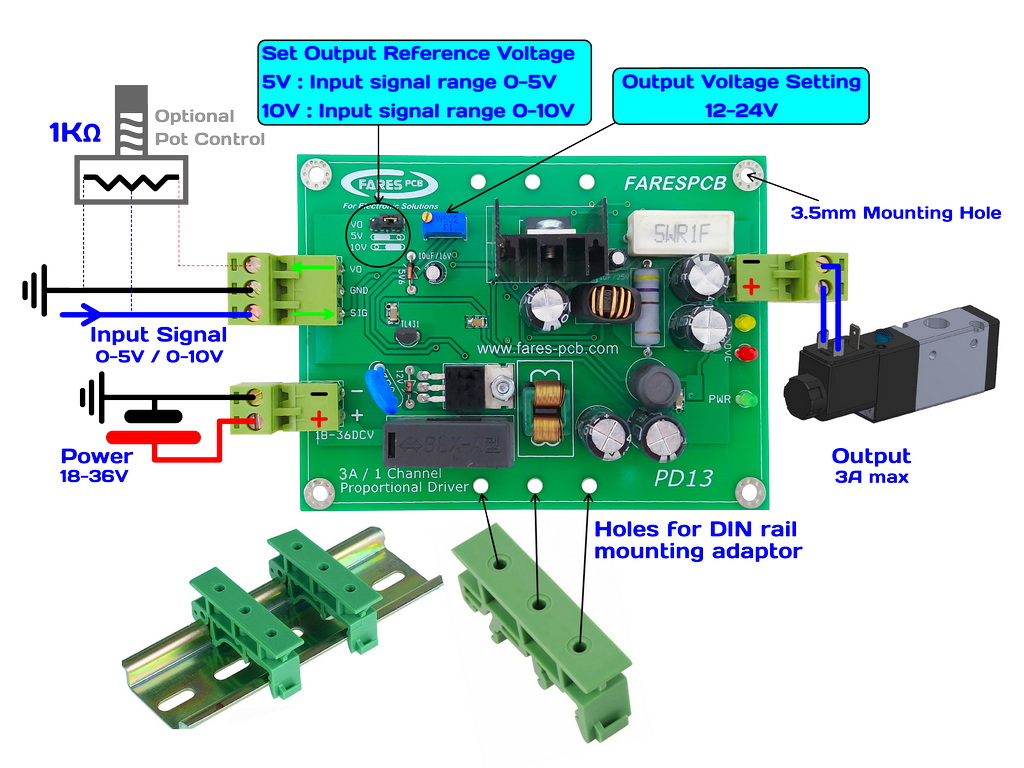

3A Single Channel Proportional Valve Driver (PD13)
950.00 EGP
PD13 is a single-channel industrial proportional solenoid valve driver suitable for flow or pressure control.
Features :
- Operating mode: Switching.
- Operating voltage range: 18~36V.
- Maximum output power: 150W.
- Pot-adjustable output voltage range: 12~24V.
- Maximum output current: 3 ampere.
- Two selectable input signal ranges: (0~5V) and (0~10V).
- Two selectable output reference voltages 5V and 10V (MAX 20mA).
- Reverse polarity protection.
- Over-current and short-circuit protection.
- Green LED for power indication.
- Yellow LED for output indication.
- Red LED for output fault status.
- Four 3.5mm mounting holes for easy installation.
- DIN Rail mounting using PCB carrier or PCB bracket ( Optional ).
- Dimension: 107 x 80 x 27 mm.
In stock
