Additional information
| Weight | 0.207 kg |
|---|---|
| Origin | Egypt |

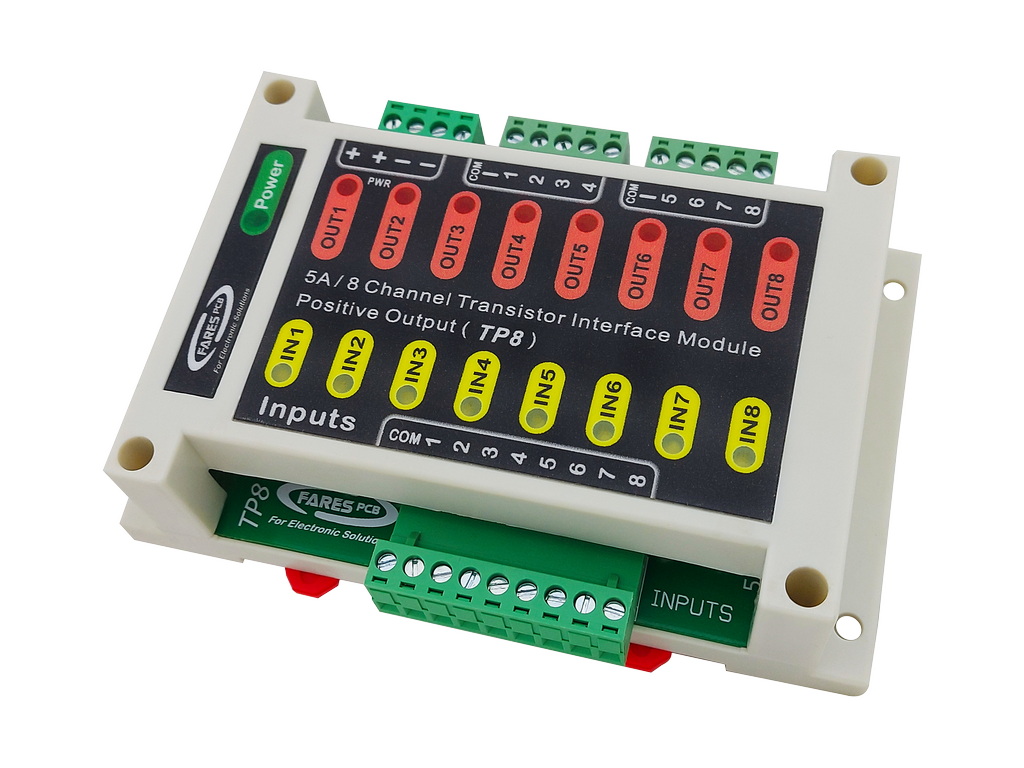

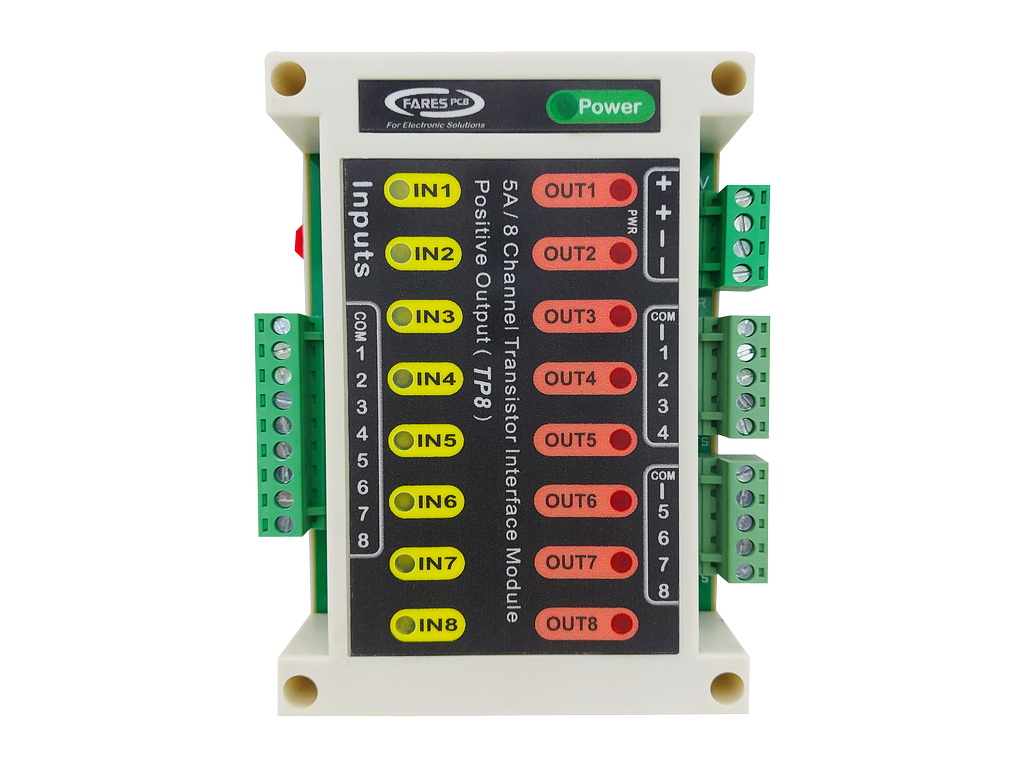

5A/8-Channel +ve Output Transistor Interface Module TP8
750.00 EGP
Opto-isolated 8-channel / 5 Ampere positive output transistor module for PLC industrial control.
Features :
- 8-channel positive output FET type transistor.
- Operating voltage range: 12-36V (for 48V output pls contact us).
- Maximum operating current: 5 ampere.
- All channels are opto-isolated for safety.
- Green LED indicator for power input.
- Yellow LED indicator for each Input.
- Red LED indicator for each output.
- Provides 3A fuse for overcurrent protection.
- DIN rail mountable plastic box enclosure.
- Dimensions: 145 X 90 X 40mm.
Out of stock
