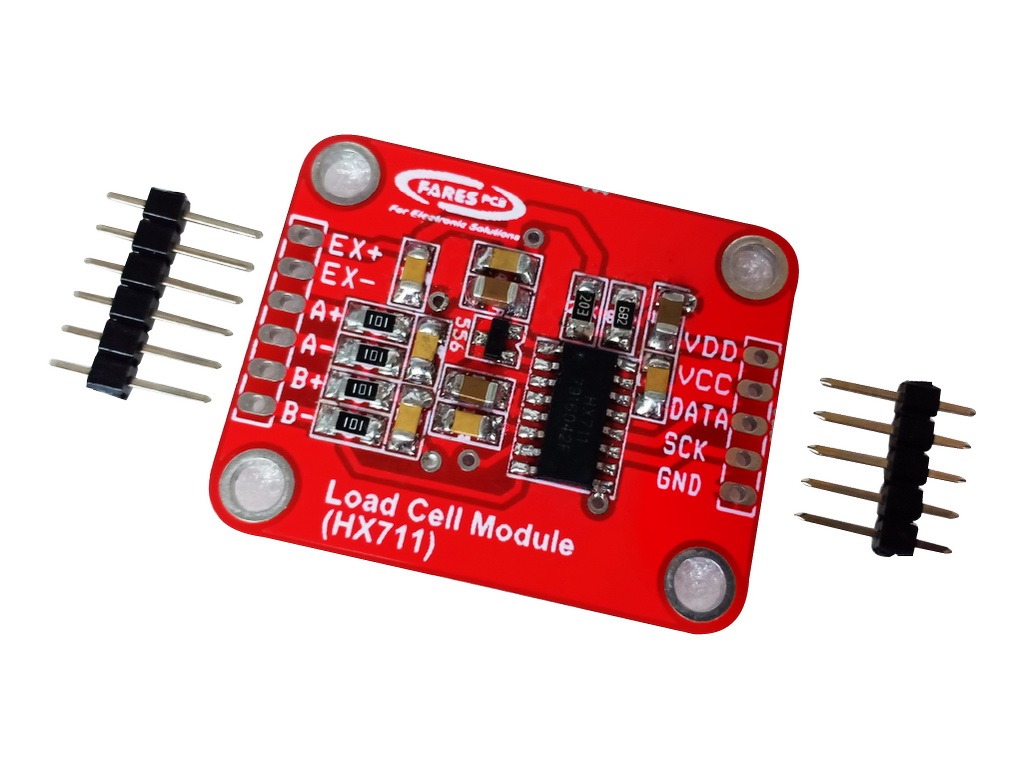

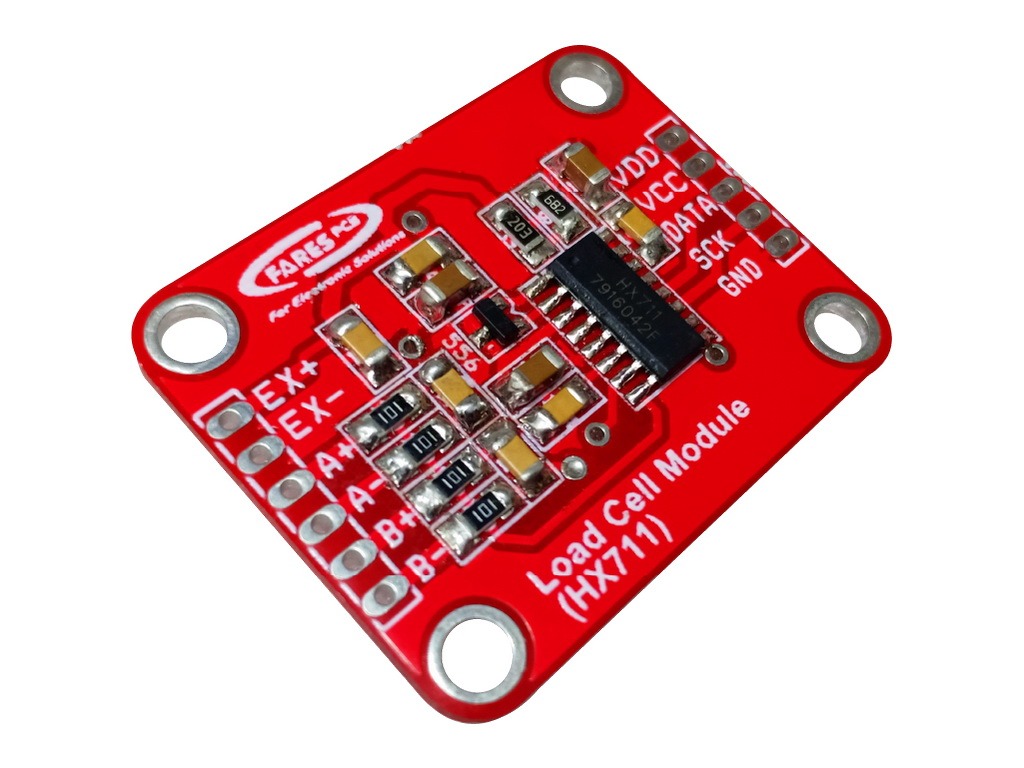

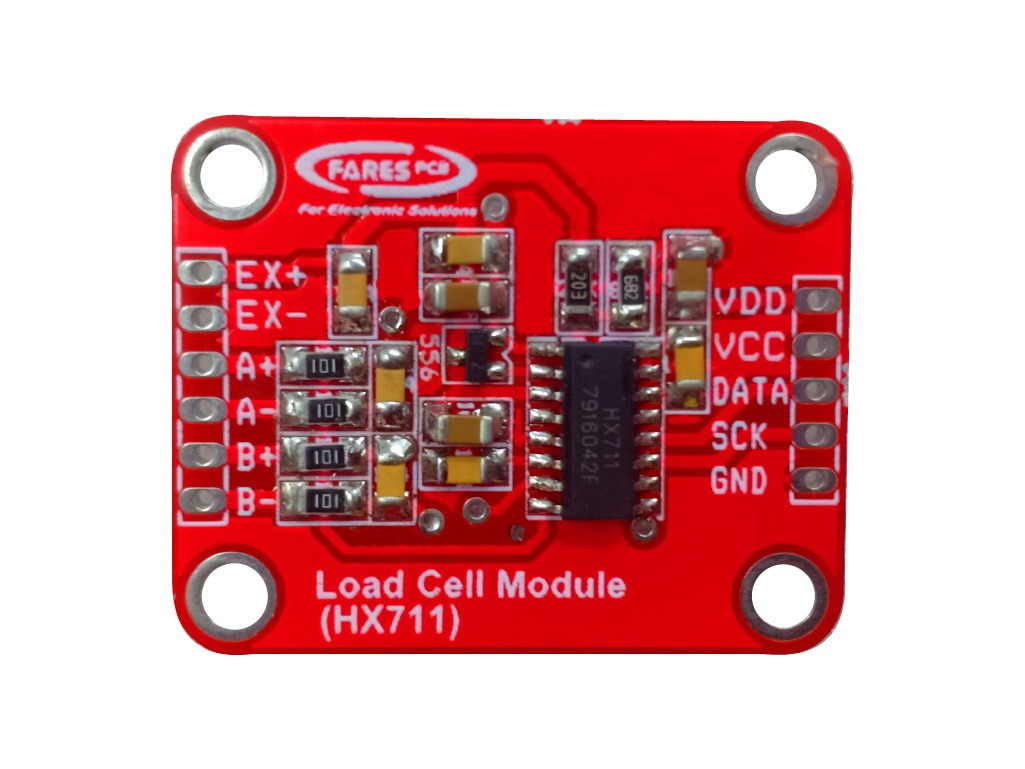

Load Cell Module (HX711)
60.00 EGP
This module provides an easy way to interface microcontroller to any load cell. It is based on HX711 IC which provides a high-resolution analog-to-digital converter and uses a two-wire interface (clock and data) for communication. A very accurate weight measurement can be obtained with some calibration.
Features :
- Operating Voltage 2.7V- 5.5V.
- Operating Current: 1.5mA.
- Resolution 24 bit.
- Output data rate 10SPS or 80SPS.
- Operation temperature range: -40 ~ +85℃.
- Dimension : 38 X 30 X 3mm.
Out of stock
