Additional information
| Weight | 0.011 kg |
|---|---|
| Origin | Egypt |

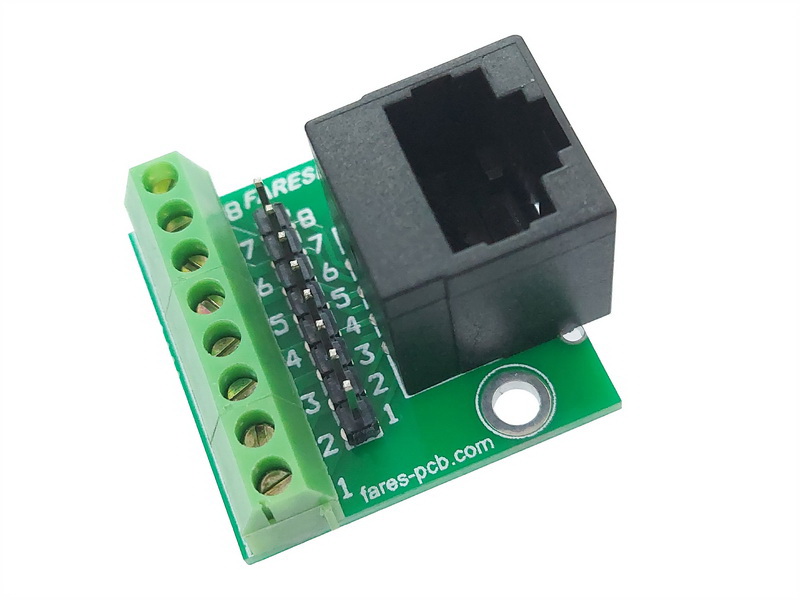

RJ45-8 to Screw Terminal + Pin Header (Vertical Plugging)
35.00 EGP
RJ45 8pin socket vertical type on PCB to block terminals and pin header facilitates solderless connection to RJ45 connector and is also suitable for panel mounting and test applications.
Features :
- RJ45 pins are routed to pin headers and screw clamp terminals.
- Both terminals are labeled according to the RJ45 pin number to which they are routed.
- Pin header pitch distance is 2.54mm.
- Screw terminal pitch distance is 3.5mm.
- Two (Ø 3.5mm) mounting holes for easy installation.
- Dimensions: 29 X 29 X 15mm.
In stock
