Additional information
| Weight | 0.004 kg |
|---|
Serial USB-A to Wireless nRF Module (SNM-A)
450.00 EGP

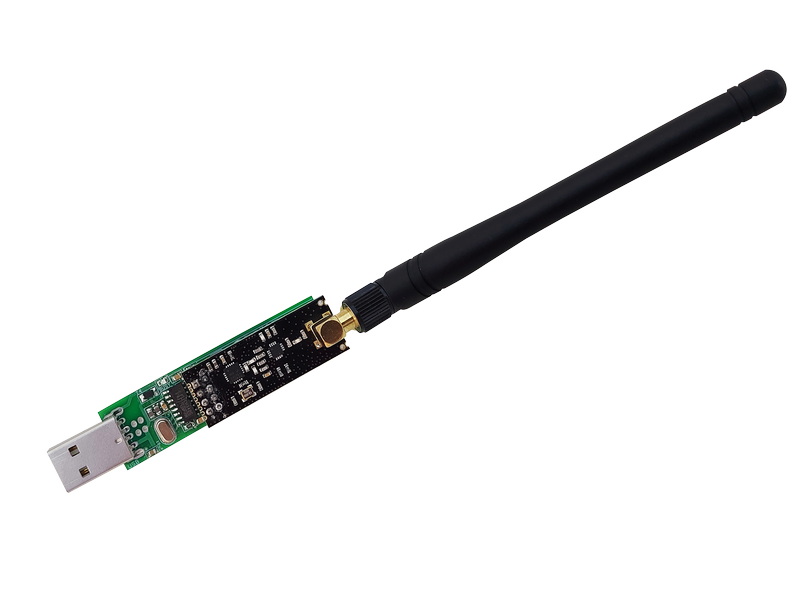

SNM-A module is a smart serial USB (A-type connector) to wireless module based on the nRF24L01+ from Nordic Semiconductor and uses the controller ATMEGA8.
The nRF24L01+ module is designed to operate in the global 2.4GHz ISM frequency band and uses GFSK modulation to transmit data.
ATMEGA8 microcontroller comes pre-programmed to support RMxN relay modules protocol. However, the user can program ATMEGA8 microcontroller with other firmware.
SNM-A module uses a CH340 chip as a USB to Serial converter.
Features:
- Compatible with the protocol of RMxN wireless relay module.
- USB interface: USB type A connector.
- Driver: CH340.
- Baud rate: 115200.
Out of stock
