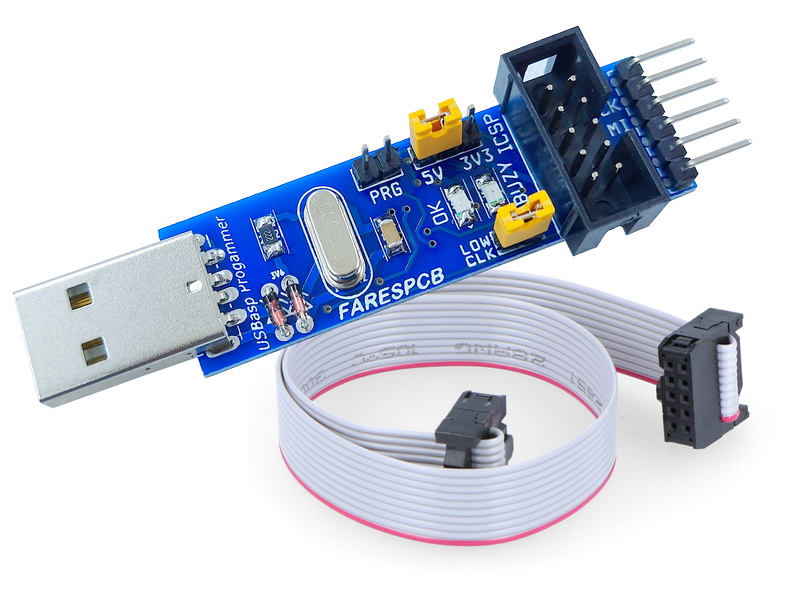

USBasp (Type A) AVR Programmer

Compact USB programmer for AVR microcontrollers with voltage selection, speed jumper, and clear status indication.

  Features :

• Supported Devices: Compatible with most AVR 8-bit microcontrollers such as ATmega8, ATmega16, ATmega32, ATmega328, ATmega128, ATtiny series, and AT90 series.
• USB Type-A Connector: Direct connection to PC without extra cables.
• Supports low-clock speed programming via jumper setting.
• Target Power Selection: 3-pin header with jumper to supply the target device with 5V, 3.3V, or completely disconnect power.

• Flexible Connectivity: Two options for connecting to the target device:

  • 6-pin XH cable header.

  • 10-pin IDC socket.

• 10-Pin IDC cable is included.
• Green LED: Indicates normal operation.
• Red LED: Indicates programming in progress (busy).
• Firmware Upgradable: Dedicated PRG header for easy firmware updates.

• Wide Compatibility: Supports various AVR microcontrollers and works seamlessly with tools like AVRDUDE.

• Compact PCB Design: Small form factor for convenient use in different projects.

• Dimensions(L X W X H): 75X20X12 mm (including connectors)
